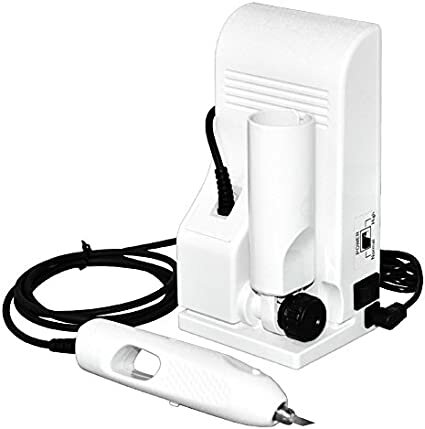

EchoTech ZO-91 Ultrasonic Cutter
Made By Honda Electronics in Japan See link for operation videos https://echotech.co.jp/en/products/2552/ (((Pls note that we only ship within the EU all countries except France and Czech)))

Product number

x93434x

€ 499,00 *
Price per unit

Stock : 1

Quantity:
Order

Wishlist

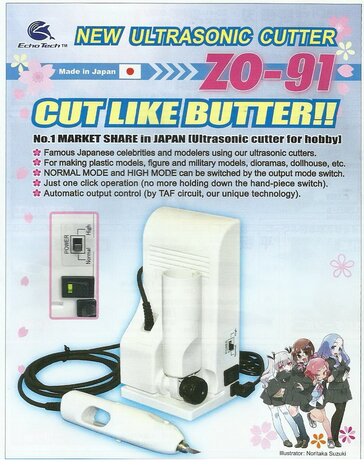

Features

-Just one click operation.
 (No more holding down the hand-piece switch.)
-Normal mode and High mode can be switched by the output mode switch.
-Normal mode runs for about 10 minutes.
-High mode runs for about only 5 minutes due to rapid temperature rise.
-A temperature sensor is equipped inside of the hand-piece.
 (In case the temperature rises, it stops the ultrasonic vibration and oscillation light blinks.)
-Automatic output control by TAF circuit, our unique technology.
 (TAF oscillation circuit enables the most suitable output and vibration for cutting.)
-There are around 30 types of replacement blades.
 (Such as curving blade, flat blade, long blade, filing plate(electrodeposited diamond) etc.)

Oscillation 40kHz
External dimensions
(Unit: mm)
Main unit (Generator): 173 × 89 × 76 (excluding protrusions)
Hand-piece: φ32 × 144 (including blade)
Weight Main unit (Generator): Approx. 300 g
Hand-piece: Approx. 70g (including hand-piece cable)
Hand-piece cable 1.6 m (straight cable)
Max. power consumption Max. 85 VA
Power Source AC adapter INPUT: 100 – 240 VAC 50/60 Hz OUTPUT: 12 VDC
Circuit protection The temperature sensor has installed inside the hand-piece
Ambient temperature Temperature: 10 to 35℃ (No condensation)
Accessories Standard blade (HA04): 1 pack (40 pcs./pack)
Blade anchor (ZH04): 1 pc.
Blade anchor screw (HB03): 3pcs.
Hexagon wrench (RR02): 1 pc.

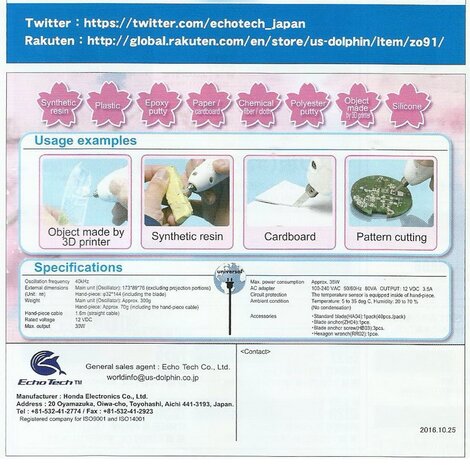

Usage examples (reference)


-Synthetic resin, Plastic, Epoxy putty, Paper/cardboard, Chemical fiber/cloth, polyester putty, Object made by 3D printer, Silicone etc.
-Thickness: 3 mm maximum
-Plastic scale models, military models, railway models, mini4WD, figure, dioramas, dollhouse, gourd hole drilling, cartonnage, cardboard craft, deburring in garage kit production, printed circuit board pattern modification, white metal and wood cutting in sailing ship model making.
