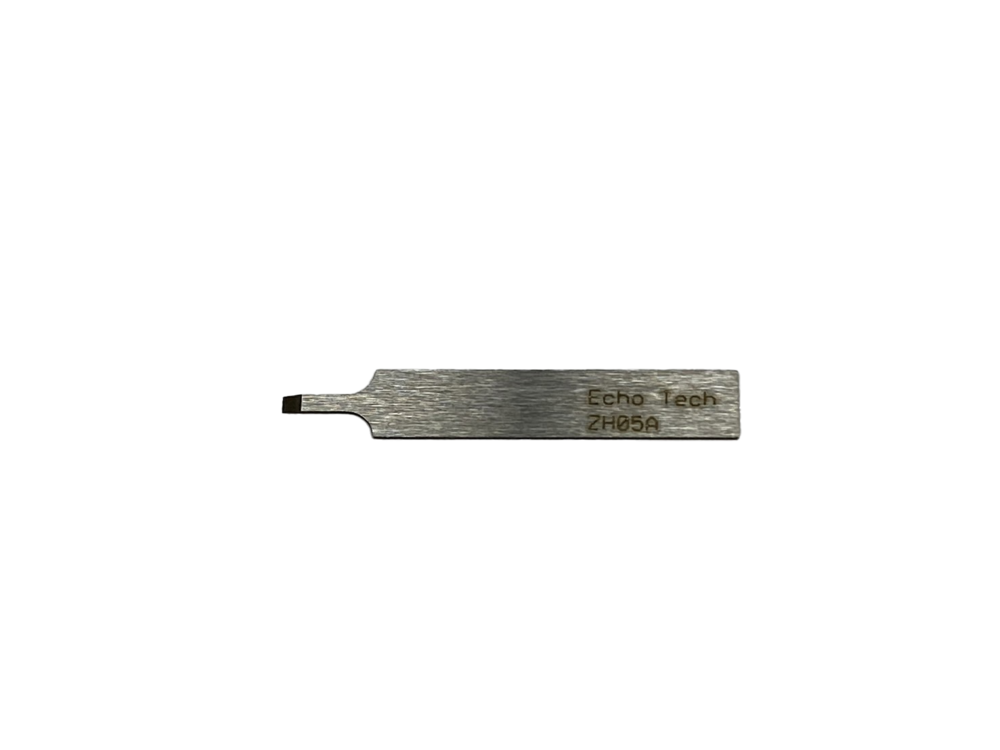

The Flat Blade series is designed like a graver or chisel, ideal for controlled, flat scraping or precision shaping. Available in two tip widths, these blades offer consistent performance with minimal effort.
Made from SKH (High-Speed Tool Steel), the blades are strong but must be used with care—applying excessive force may damage the blade.
⚠️ Note:
– Not compatible with S-High mode.
– Approximately 1 mm of the blade will be inside the blade anchor after installation.
– Avoid applying excessive force to prevent blade damage.
– Always wear safety goggles during use.

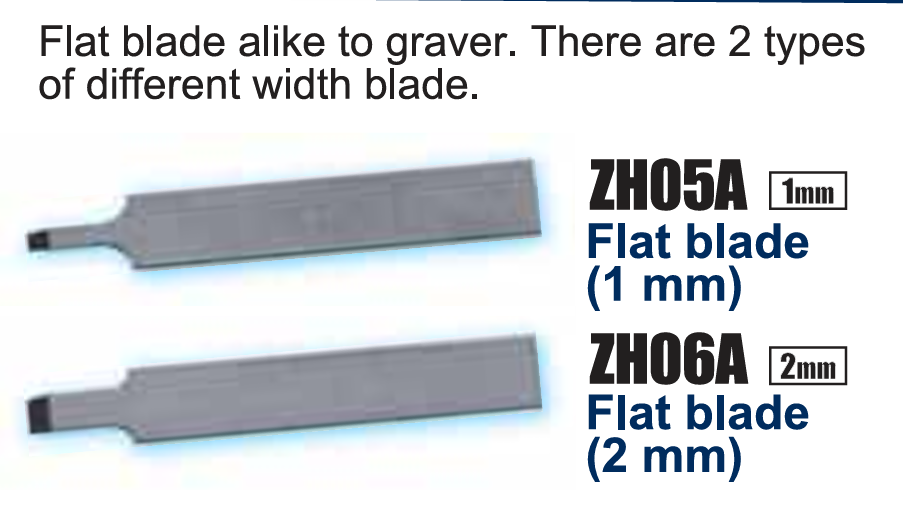

Available Types:
• ZH05A – 1 mm tip width / 0.4 mm thickness / 25 mm length
• ZH06A – 2 mm tip width / 0.4 mm thickness / 25 mm length
Specifications:
Blade type: Flat / Graver-style
Material: High-Speed Tool Steel (SKH)
Compatible blade anchor: ZH04
Compatible with: Ultrasonic cutters ZO-91 and ZO-95
