The Flat Plate is a non-blade attachment specialized for processing clay and material surfaces. It is ideal for spot welding or damage processing. Due to its flat and blunt shape, it does not cut but rather shapes or presses the material.
Made from High-Speed Steel (HSS), this plate must be handled with care—excessive force or twisting can cause breakage.
⚠️ Note:
– Not compatible with S-High mode.
The Flat Plate is a non-blade attachment specialized for processing clay and material surfaces. It is ideal for spot welding or damage processing. Due to its flat and blunt shape, it does not cut but rather shapes or presses the material.
Made from High-Speed Steel (HSS), this plate must be handled with care—excessive force or twisting can cause breakage.
⚠️ Note:
– Not compatible with S-High mode.
– Approximately 11 mm of the blade will be inside the blade anchor after installation.
– Avoid applying excessive force or bending the plate.
– Always wear safety goggles during use.

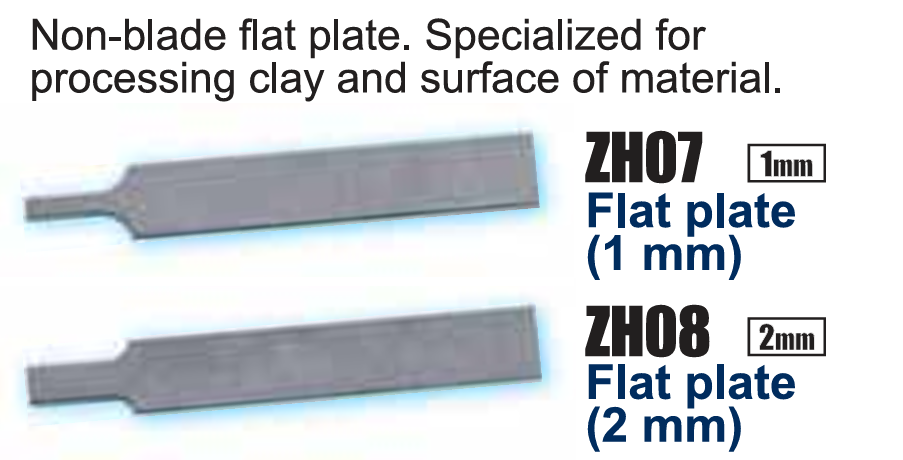

Available Types:

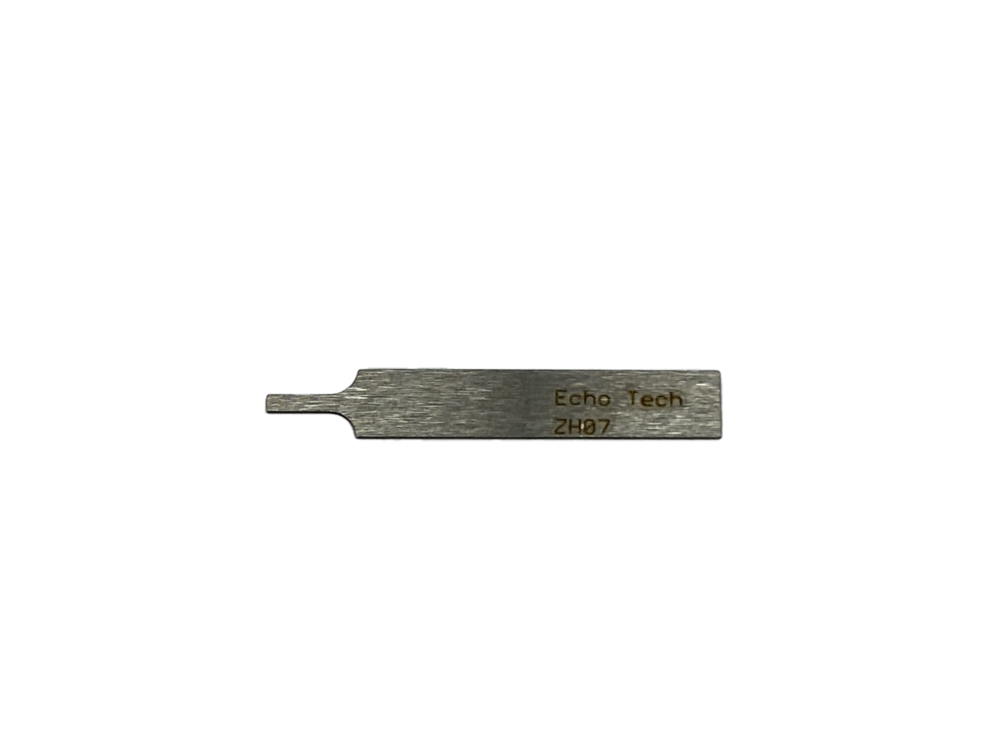

• ZH07 – 1 mm tip width / 0.4 mm thickness / 25 mm length

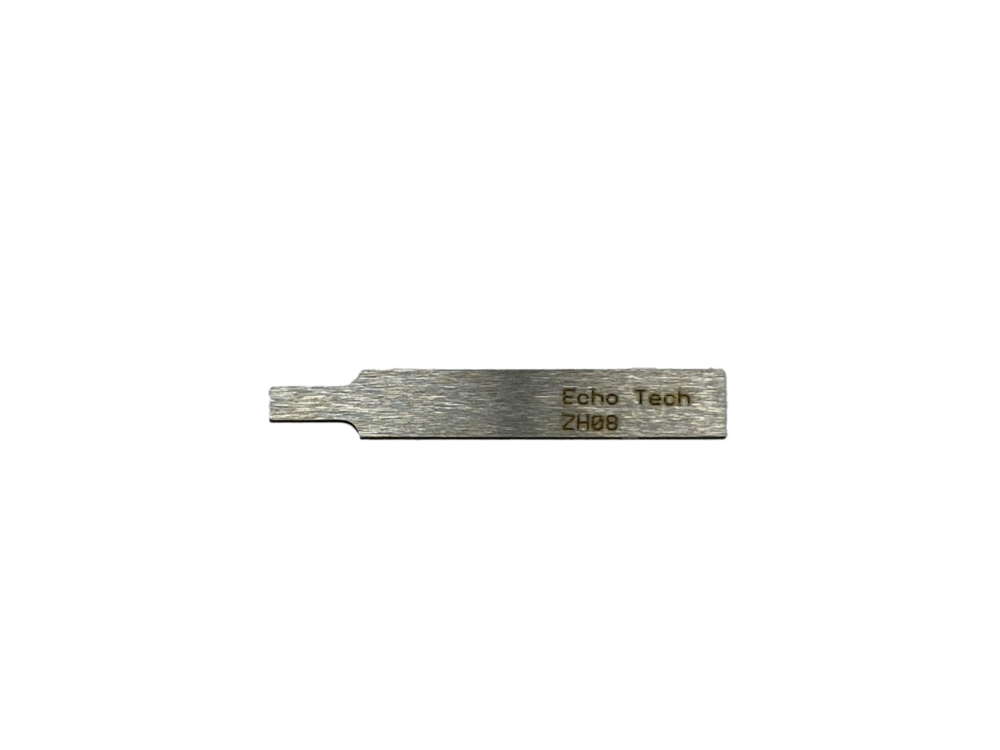

• ZH08 – 2 mm tip width / 0.4 mm thickness / 25 mm length
Specifications:
Blade type: Non-cutting flat plate
Material: High-Speed Steel (HSS)
Application: Spot welding, damage processing, surface treatment
Compatible blade anchor: ZH04
Compatible with: Ultrasonic cutters ZO-91 and ZO-95
– Approximately 11 mm of the blade will be inside the blade anchor after installation.
– Avoid applying excessive force or bending the plate.
– Always wear safety goggles during use.
Available Types:
• ZH07 – 1 mm tip width / 0.4 mm thickness / 25 mm length
• ZH08 – 2 mm tip width / 0.4 mm thickness / 25 mm length
Specifications:
Blade type: Non-cutting flat plate
Material: High-Speed Steel (HSS)
Application: Spot welding, damage processing, surface treatment
Compatible blade anchor: ZH04
De Flat Plate is een niet-snijdend hulpstuk, speciaal ontworpen voor het bewerken van klei en oppervlakken van materialen. Ideaal voor puntlassen of beschadigingsbewerking. Door zijn platte, stompe vorm is het niet bedoeld om te snijden, maar om te vormen of te drukken.
Gemaakt van High-Speed Steel (HSS). Gebruik voorzichtig—buigen of kracht zetten kan breuk veroorzaken.
⚠️ Opmerking:
– Niet compatibel met S-High modus.
– Ongeveer 11 mm van de plaat zit in de houder na installatie.
– Vermijd overmatige kracht of buigen.
– Draag altijd een veiligheidsbril tijdens gebruik.
Verkrijgbare varianten:
• ZH07 – 1 mm puntbreedte / 0,4 mm dik / 25 mm lang
• ZH08 – 2 mm puntbreedte / 0,4 mm dik / 25 mm lang
Specificaties:
Type: Niet-snijdende platte plaat
Materiaal: High-Speed Steel (HSS)
Toepassing: Puntlassen, beschadigingsbewerking, oppervlaktebehandeling
Compatibele meshouder: ZH04
Compatibel met: Ultrasoon snijders ZO-91 en ZO-95
Compatible with: Ultrasonic cutters ZO-91 and ZO-95
