EchoTech ZO-91 Ultrasonic Cutter (CE Certified)

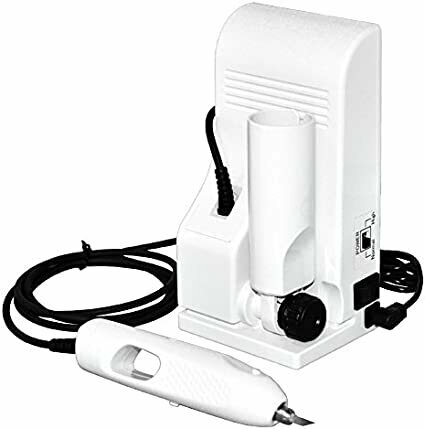

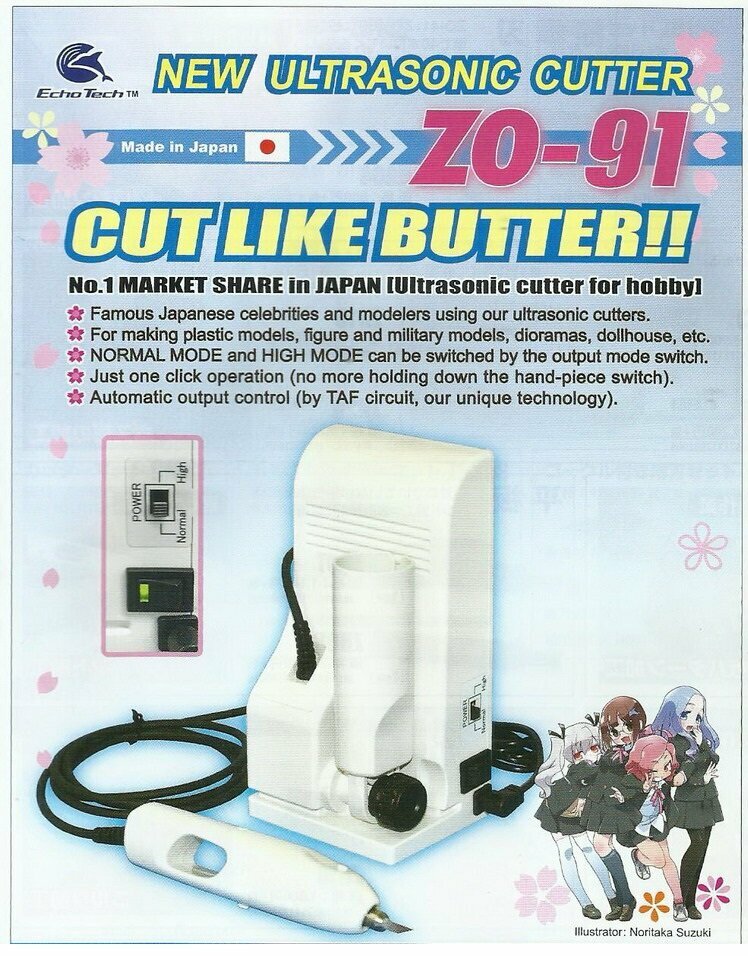

Echo Tech ZO-91 Ultrasonic Cutter

Standard Model – Compact, Versatile, and Precise

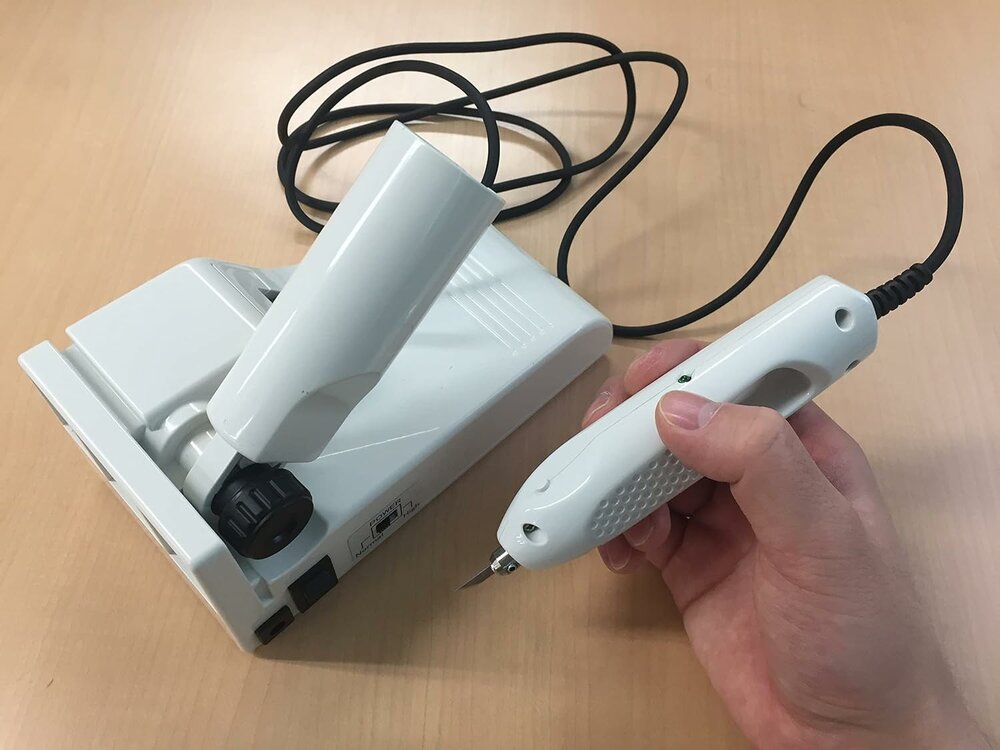

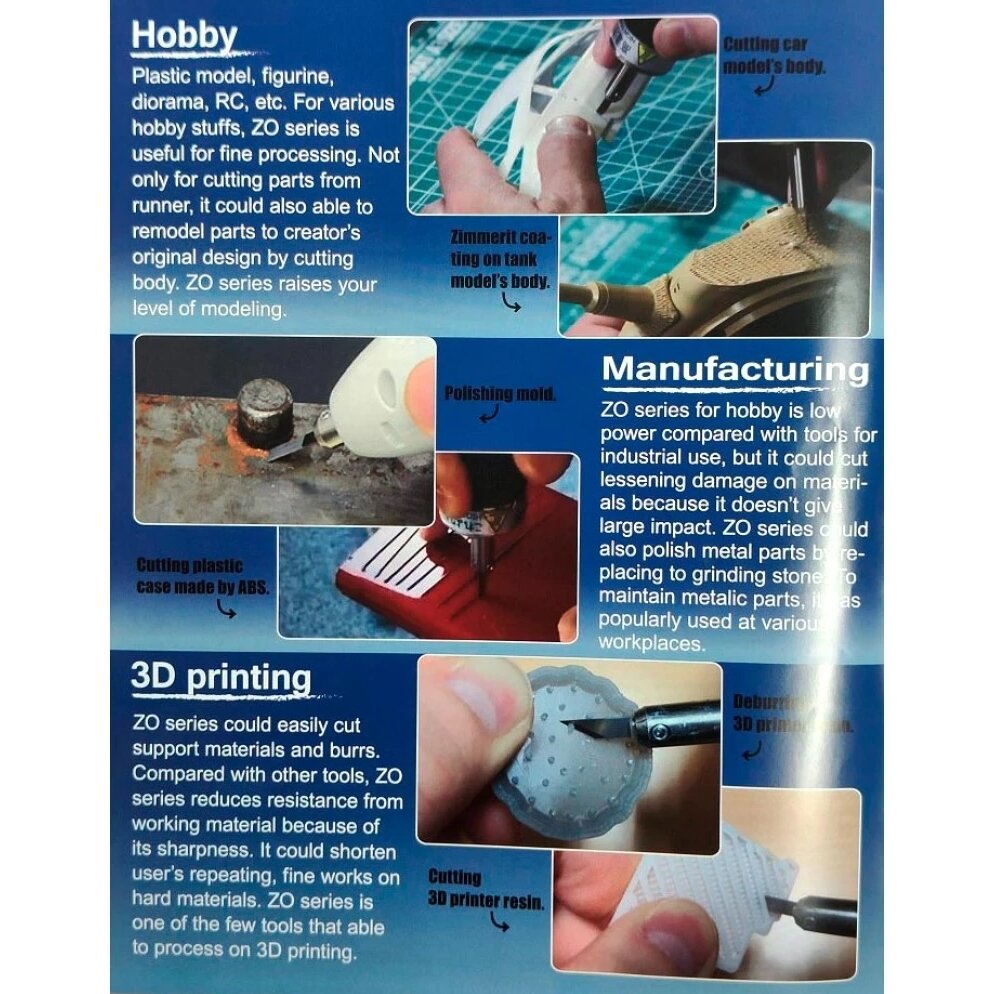

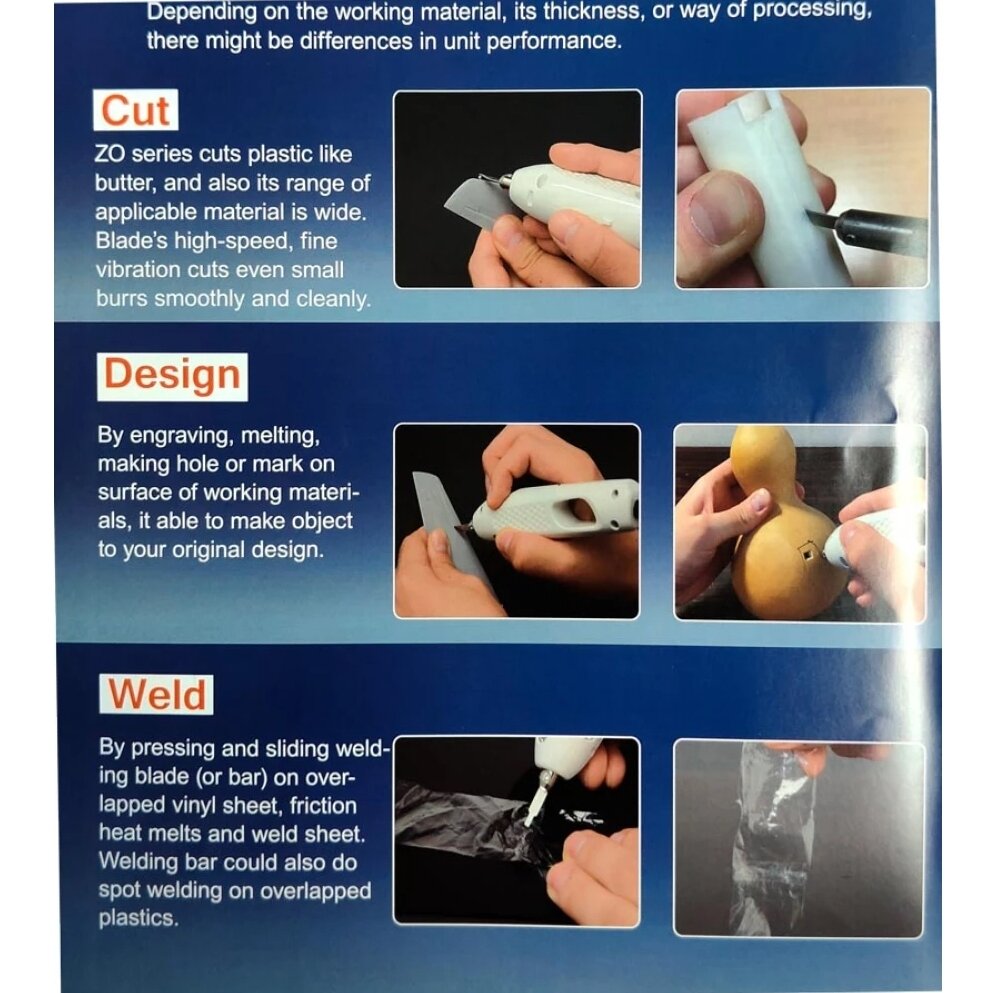

The ZO-91 is the standard model in the ZO series—a compact ultrasonic cutter designed for a wide range of applications including cutting, polishing, and even welding. Its lightweight design and powerful performance make it ideal for working with materials like resin, leather, fabric, plaster, and more.

At the heart of the ZO-91 is a high-frequency transducer that vibrates the cutting tip at 40,000 times per second (40kHz), enabling smooth and precise cuts with minimal effort.

Key Features

• One-Touch Operation – Simple and intuitive controls for ease of use

• Dual Output Modes – Switch between Normal and High modes depending on your task

  • Normal Mode: Operates for up to 10 minutes

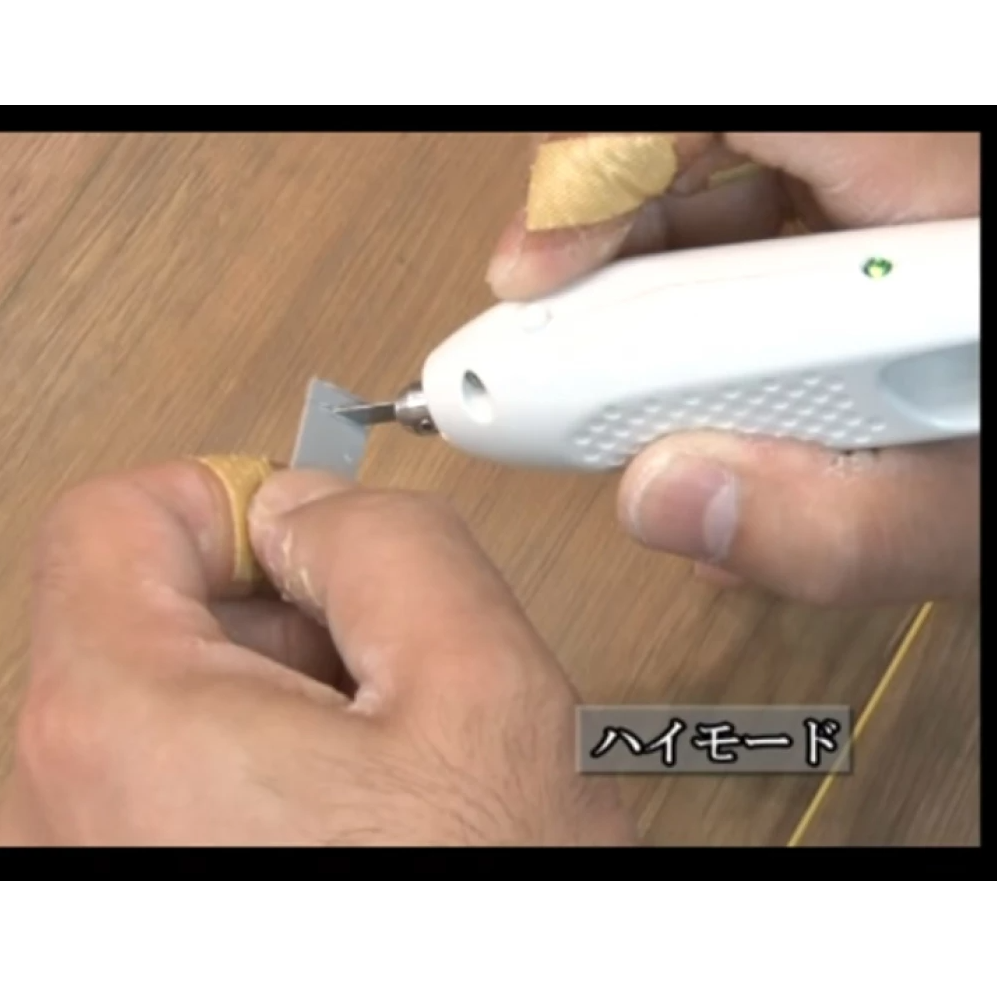

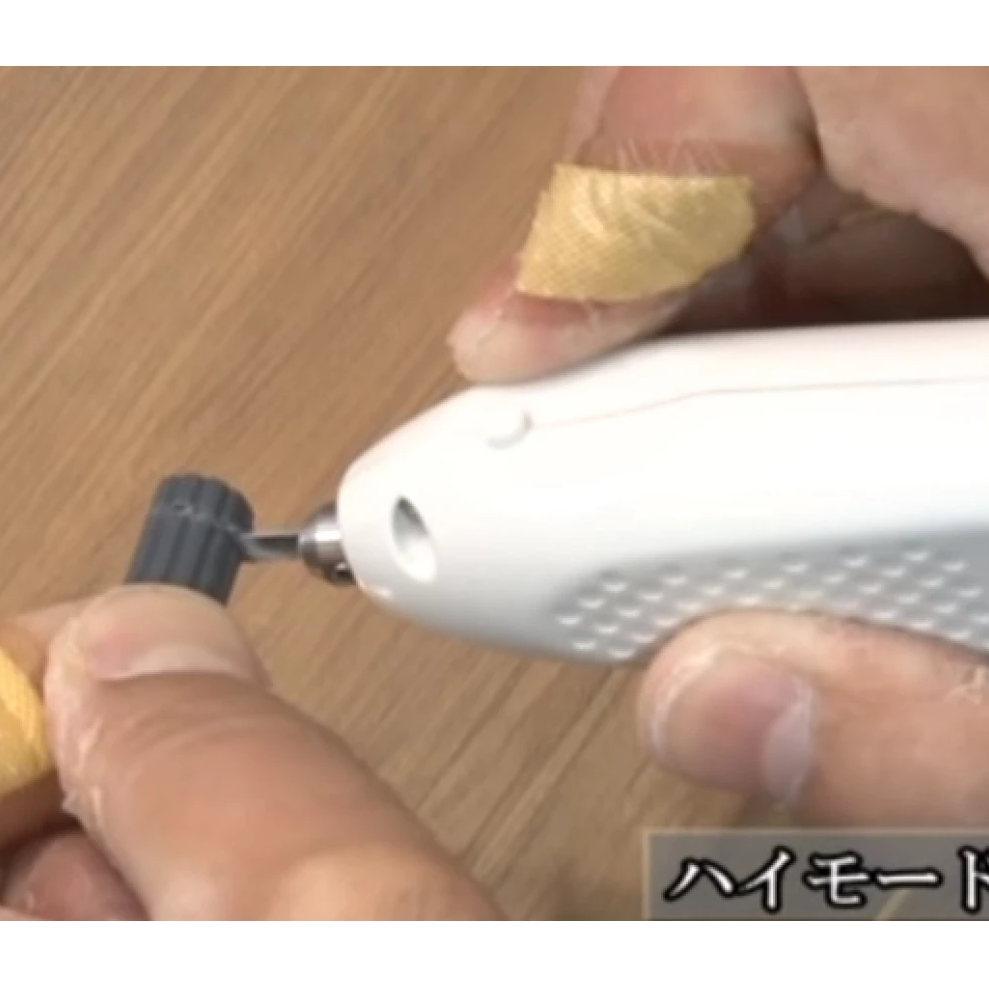

  • High Mode: Operates for up to 5 minutes due to increased heat

• Built-In Temperature Sensor – Automatically stops operation and blinks the status light if the cutting handle overheats

• Smart Output Control – TAF circuitry automatically regulates output for consistent performance

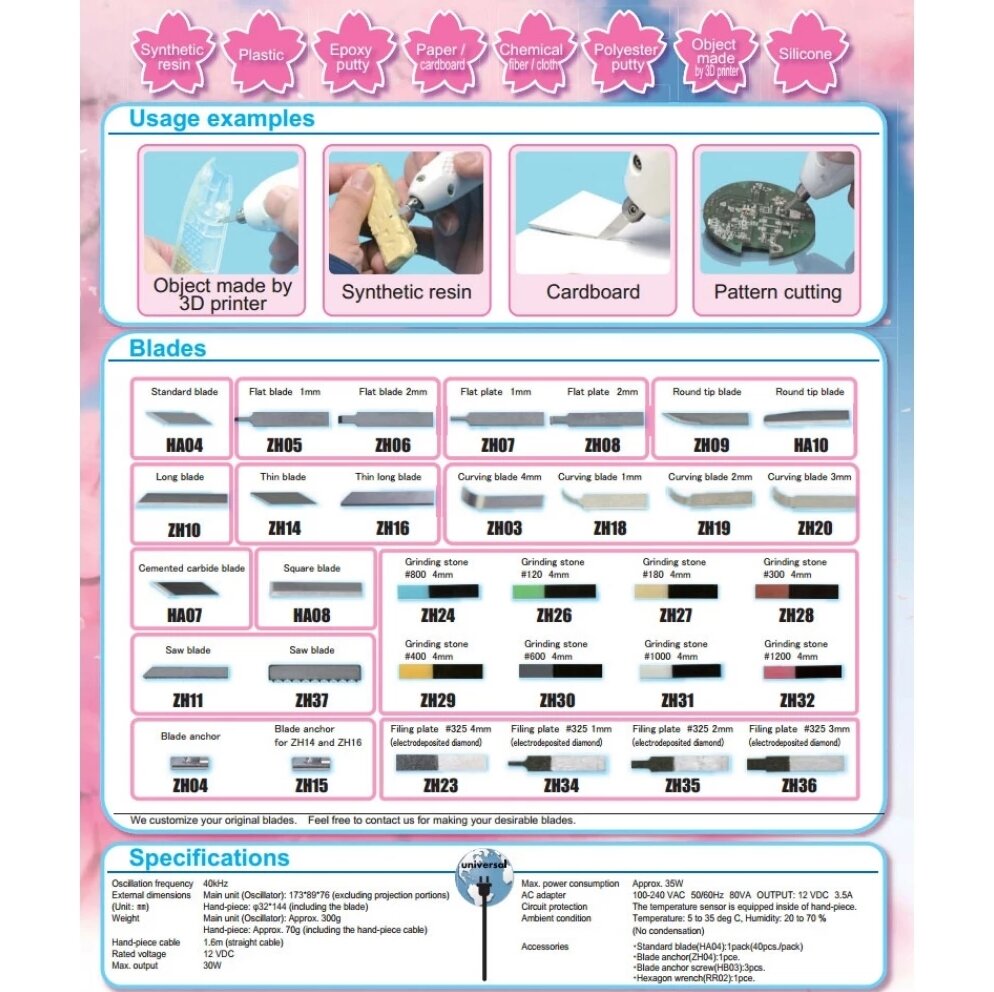

• Interchangeable Blades – Compatible with over 30 different blade types for various applications

Technical Specifications

• Oscillation Frequency: 40kHz

• Dimensions:

  • Main Unit: 173 × 89 × 76 mm

  • Cutting Handle: φ32 × 144 mm (including blade)

• Weight:

  • Main Unit: approx. 300g

  • Cutting Handle: approx. 70g

• Cable Length (Handle): 1.6 meters

• Max Power Consumption: 85 VA

• Power Supply:

  • AC Adapter Input: 100–240V AC, 50/60Hz

  • Output: 12V DC

• Operating Temperature Range: 10–35°C

• Safety: Overheat protection via internal temperature sensor

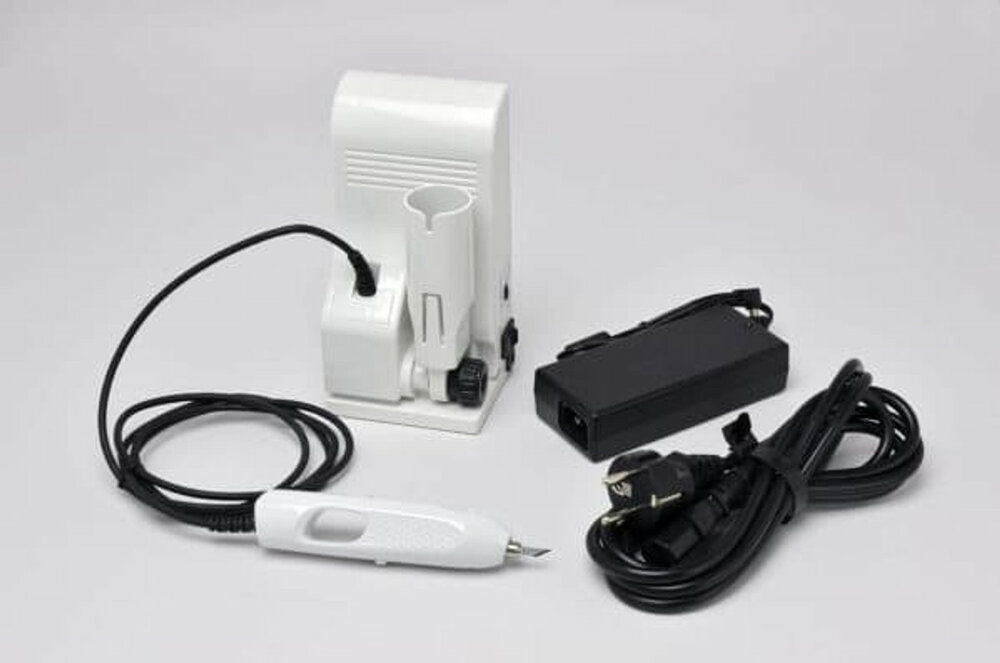

Included Accessories

• Standard Blade HA04: 1 pack (40 pcs, including blades with mounting holes)

• Blade Anchor ZH04: 1 pc

• Blade Anchor Screw HB03: 3 pcs

• Hex Wrench RR02: 1 pc

• Blade Protector ZH805: 1 pc

This product is CE certified by the manufacturer, HONDA Electronics Co., Ltd.
